Excavators are among the most versatile and widely used machines in the construction and mining industries, capable of tackling tasks in mining, civil construction, water conservancy projects, and more.
As industry professionals know, selecting the right attachments, such as buckets, breakers, rippers, or hydraulic grabs, is key to maximizing an excavator's efficiency and adaptability across various job sites.
But did you know there are over ten types of excavator buckets, each designed for specific applications? Choosing the right bucket can significantly enhance your machine’s performance and extend its lifespan. Origin Machinery will introduce you to eight common types of excavator buckets that will take your equipment’s capabilities to the next level.

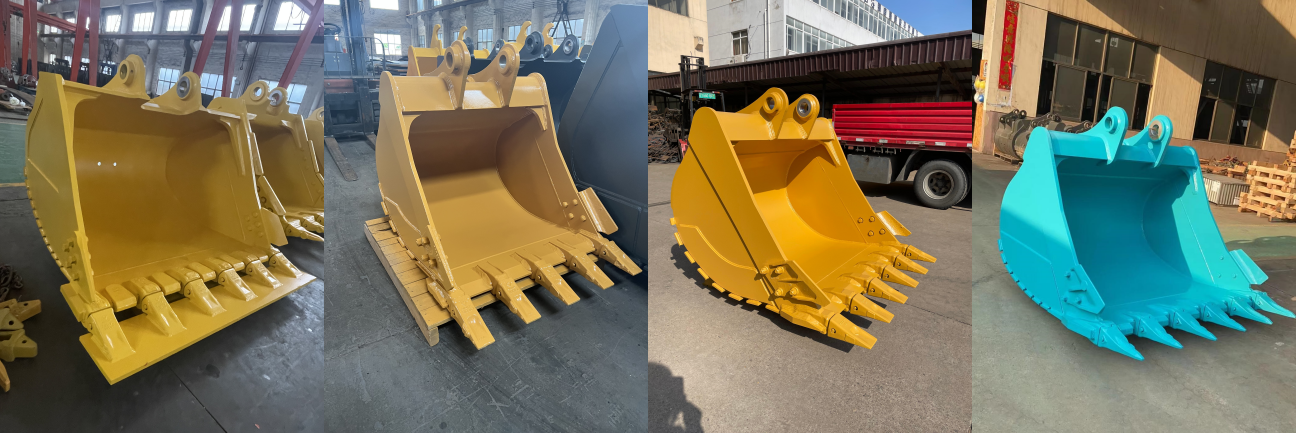

1. Standard Bucket
· Features: Large capacity and wide bucket opening for a higher fill factor. Cost-effective and efficient for light-duty operations.
· Applications: Ideal for digging soft soils, sand, and gravel, often referred to as the General-Purpose Bucket or Earthmoving Bucket.
· Limitations: Made with thinner materials and lacks reinforcement, making it less durable in heavy-duty environments.
2. Heavy-Duty Bucket
· Features: Reinforced with high-strength, wear-resistant steel in stress-prone areas. Combines the efficiency of a standard bucket with enhanced durability and longevity.
· Applications: Perfect for heavy-duty tasks like digging hard soil or loading crushed rock and gravel.
3. Rock Bucket
· Features: Constructed with thicker plates, added side guards, wear plates, and heavy-duty teeth. Superior resistance to abrasion and stress.
· Applications: Designed for extreme conditions, such as mining operations and handling blasted rock, hard stone, and more.

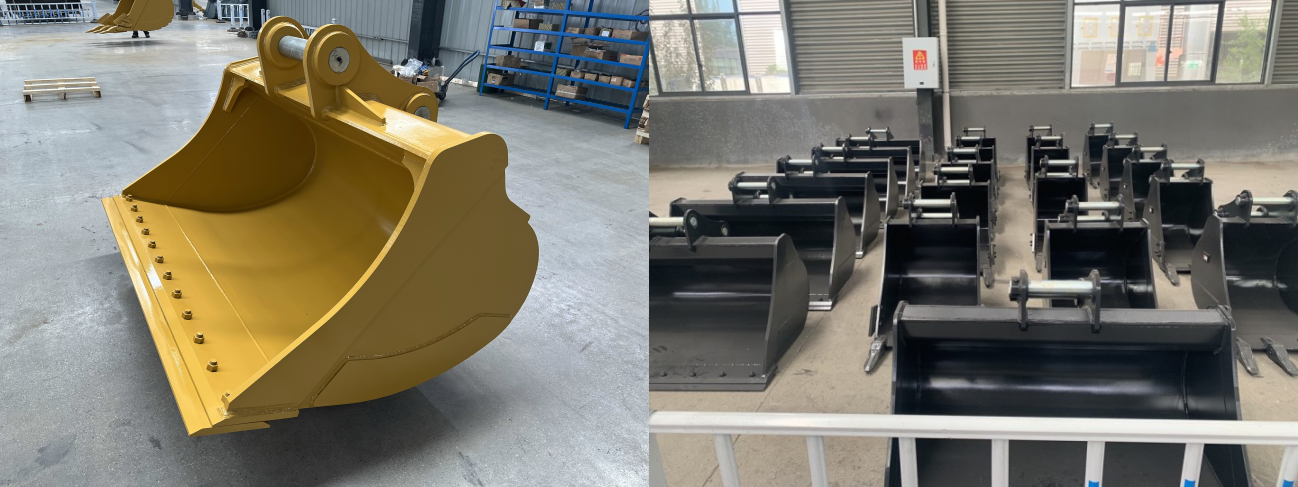

4. Cleanup Bucket (Mud Bucket)
· Features: Wide design with no teeth, maximizing capacity for light-duty operations.
· Applications: Ideal for leveling slopes and cleaning ditches, rivers, or canals.
5. Tilt Bucket
· Features: Equipped with a hydraulic cylinder that allows a tilting range of up to 45°. Provides excellent flexibility for shaping and grading tasks.
· Applications: Best suited for slope finishing, leveling, and dredging.
· Limitations: Not recommended for hard soil or heavy digging tasks.

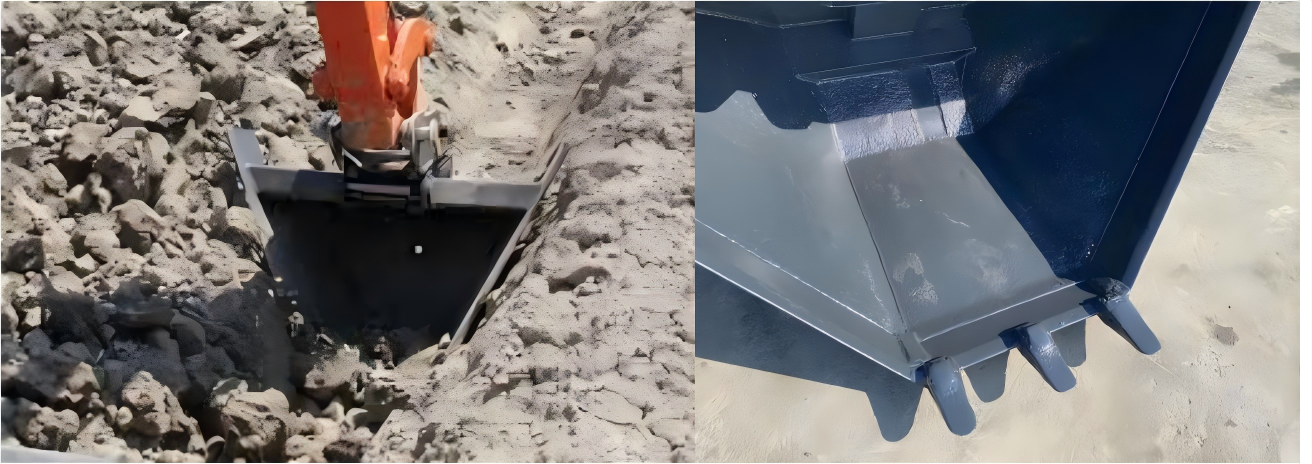

6. Trapezoidal Bucket
· Features: Specifically designed in trapezoidal or triangular shapes for precision trenching. High efficiency with the ability to create a finished profile in a single pass.
· Applications: Commonly used for ditching, water conservancy projects, agricultural irrigation, and pipe trenching.

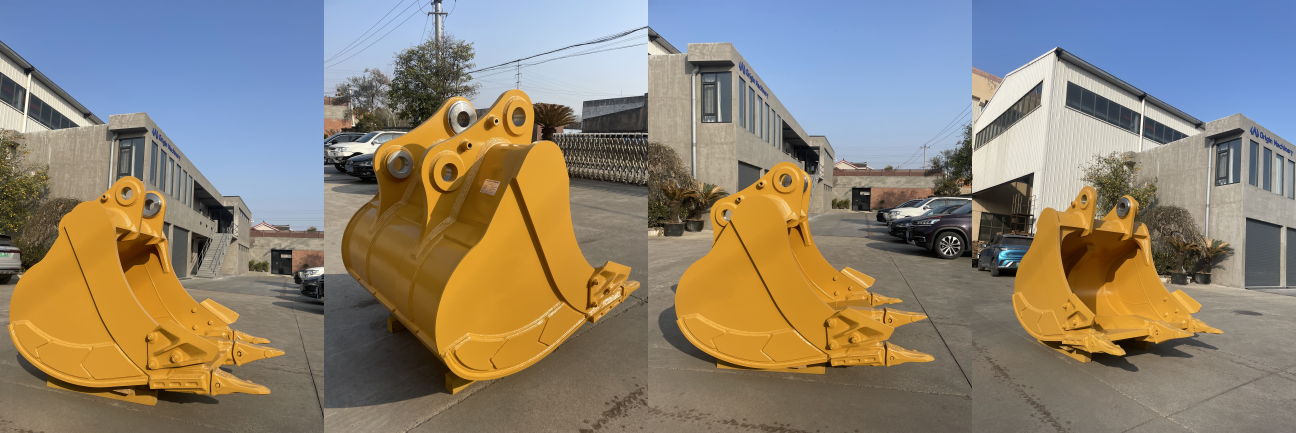

7. Ripper Bucket
· Features: Features strong ripper teeth for breaking up hard soil and rocks. Combines ripping and excavation functions in one.
· Applications: Ideal for breaking through compacted soil, weathered rock, or frost layers.
· Limitations: Smaller capacity compared to standard buckets.

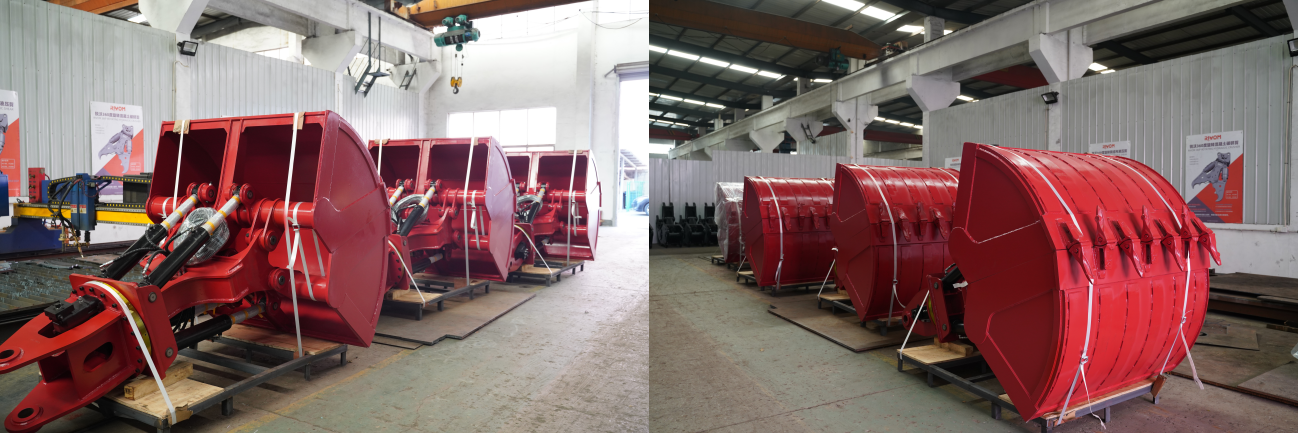

8. Clamshell Bucket
· Features: Operates through hydraulic cylinders, allowing the "clamshell" to open and close to grab materials.
· Applications: Suitable for deep excavation, unloading loose materials like coal or sand, and working in confined spaces.
· Limitations: Limited digging force, making it unsuitable for hard ground.
Selecting the right excavator bucket for the job can drastically improve efficiency and reduce operational costs. Whether it’s light earthmoving, precision trenching, or heavy-duty rock handling, the right bucket makes all the difference.
Origin Machinery manufactures all types of excavator buckets and demolition attachments for the construction, quarrying, mining, recycling and demolition industries since 2004inialy. we only produced excavator buckets and supplied to the major excavator manufacturers in China.with more and more requires from oversea customers we started to do OEM manufacturing worldwide.
Contact us for more excavator & loader attachments needs: sales@originmachinery.com
